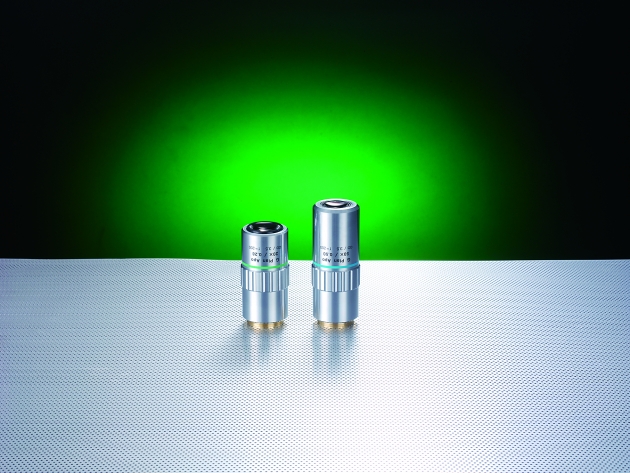

G Plan Apo 20X
產品說明
- Infinity corrected
- Bright-field observation
- Super long working distance
- Plan-Apochromat
- Designed to observe a specimen through a 3.5 mm cover glass
| Specification | |
| NO. | 378-847 |
| Type | Bright-field |
| Wavelength | 436nm-656nm |
| Magnification | 20X |
| Numerical Aperture | 0.28 |
| Working Distance | 29.42mm |
| Focal Lenght | 10mm |
| Resolving Power | 1µm |
| Depth of Field | 3.5µm |
| View Field | Ø1.2 when using ø24mm eyepiece |
| 0.24x0.32 when using 1/2 inch camera | |
| Mass | 270g |
