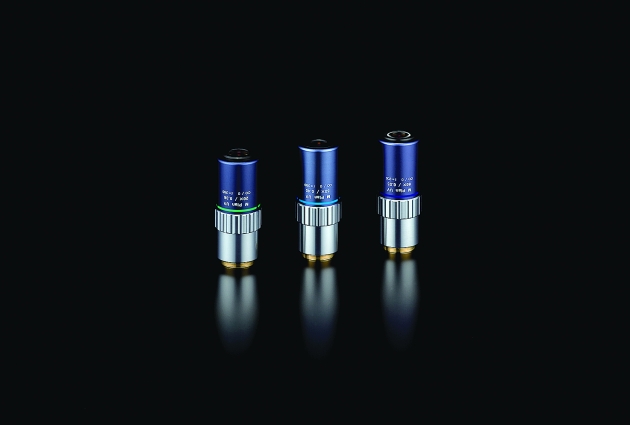

M Plan UV 10X
378-844-15
產品說明
- Infinity corrected
- Suitable for bright-field observation and laser applications
- Long working distance
- Plan
- Performance optimized for ultraviolet (266nm) and visible wavelengths
- High-transmittance in the ultraviolet range
| Specification | |
| NO. | 378-844-15 |
| Type | Bright-field |
| Wavelength | 266nm&550nm |
| Magnification | 10X |
| Numerical Aperture | 0.25 |
| Working Distance | 20.0mm |
| Focal Lenght | 20mm(f266)/20.3mm(f550) |
| Resolving Power | 1.1µm |
| Depth of Field | 4.4µm |
| View Field | Ø2.4 when using ø24mm eyepiece |
| 0.48x0.64 when using 1/2 inch camera | |
| Mass | 310g |
